200Ah 300Ah 400Ah 600 1000Ah 2000Ah 3000 Ah OPZV roj teeb

Lus piav qhia luv luv:

Product Detail

Khoom cim npe

Khoom taw qhia

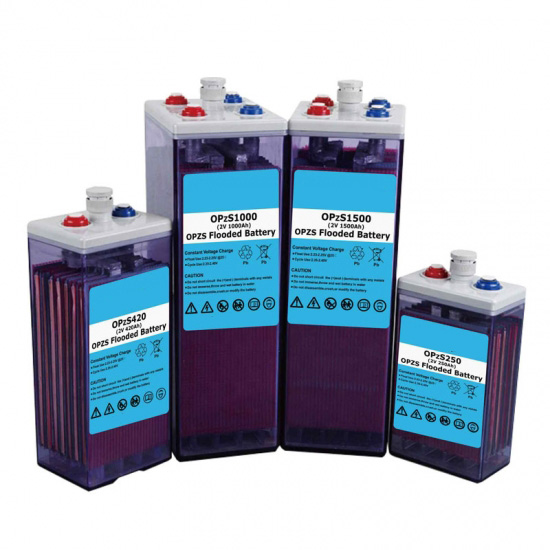

Cov roj teeb OPzS muaj cov cuab yeej siv hluav taws xob tubular uas muaj kev ua haujlwm zoo rau kev caij tsheb kauj vab ua ke nrog lub neej ntev uas muaj pov thawj nyob rau hauv qhov hluav taws xob ntab.Lub pasted tsis zoo phaj phaj tsim muab qhov sib npaug zoo tshaj plaws rau kev ua haujlwm siab tshaj plaws thoob plaws ntau qhov peev xwm.

Muaj peev xwm ntau: 216 txog 3360 Ah;

20-xyoo kev pab cuam lub neej ntawm 77 ° F (25 ° C);

3-xyoo watering ncua;

DIN 40736-1-ua raws;

OPzS Battery Advantage

1.Lub neej ntev dej nyab tubular phaj roj teeb

Tsim lub neej:> 20 xyoo ntawm 20ºC,> 10 xyoo ntawm 30ºC,> 5 xyoos ntawm 40ºC.

Cycling expectancy txog li 1500 cycles ntawm 80% qhov tob ntawm paug.

Ua raws li DIN 40736, EN 60896 thiab IEC 61427.

2. Kev saib xyuas qis

Nyob rau hauv ib txwm ua haujlwm thiab 20ºC, dej distilled yuav tsum tau ntxiv txhua 2 - 3 xyoos.

3.Dry-them los yog npaj rau siv electrolyte puv

Cov roj teeb muaj nyob rau hauv cov roj electrolyte los yog qhuav-them (rau lub sij hawm ntev stocking, thawv thauj los yog huab cua thauj).Cov roj teeb qhuav yuav tsum tau ntim nrog diluted sulfuric acid (qhov ceev 1, 24 kg / l @ 20ºC).

Cov electrolyte yuav muaj zog dua rau qhov txias- lossis tsis muaj zog rau huab cua kub.

OPzS Roj Teeb Tseem Ceeb Nta

Tsawg Tus Kheej Tawm: kwv yees li 2% ib hlis	Kev tsim kho uas tsis muaj spillable
Kev nyab xeeb Valve Installation rau Explosion Proof	Exceptional Deep Discharge Recovery Performance
99.7% Pure Lead Calcium Grids thiab Ib Daim Ntawv Pom Zoo ntawm UL	Kev khiav hauj lwm kub ntau yam: -40 ℃ ~ 55 ℃

Specifications ntawm OPzV roj teeb

Qauv	Nominal voltage (V)	Nominal Peev Xwm (Ah)	Dimension	Qhov hnyav	Terminal
Qauv	Nominal voltage (V)	(C10)	(LWH*TH)	Qhov hnyav	Terminal
BH-OPZS2-200	2	200	103 * 206 * 355 * 410mm	12,8 KG	M8
BH-OPZS2-250	2	250	124 * 206 * 355 * 410mm	15.1 KWG	M8
BH-OPZS2-300	2	300	145 * 206 * 355 * 410mm	17,5 KG	M8
BH-OPZS2-350	2	350	124 * 206 * 471 * 526 hli	19.8 KWG	M8
BH-OPZS2-420	2	420	145 * 206 * 471 * 526mm	23 KG	M8
BH-OPZS2-500	2	500	166 * 206 * 471 * 526mm	26.2 KWG	M8
BH-OPZS2-600	2	600	145 * 206 * 646 * 701 hli	35.3 KWG	M8
BH-OPZS2-800	2	800	191 * 210 * 646 * 701 hli	48.2 KWG	M8
BH-OPZS2-1000	2	1000	233 * 210 * 646 * 701 hli	58 KG	M8
BH-OPZS2-1200	2	1200	275 * 210 * 646 * 701 hli	67,8kg :ua	M8
BH-OPZS2-1500	2	1500	275 * 210 * 773 * 828mm	8 1,7kq	M8
BH-OPZS2-2000	2	2000	399 * 210 * 773 * 828mm	119.5 KWG	M8
BH-OPZS2-2500	2	2500	487 * 212 * 771 * 826 hli	152 KG	M8
BH-OPZS2-3000	2	3000	576 * 212 * 772 * 806mm	170 KG	M8
